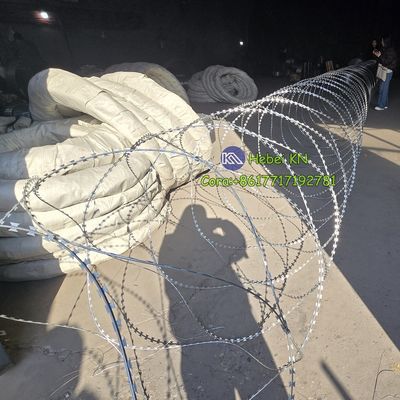

Large Stock and Fast Delivery Concertina BTO-22 Type razor Barbed Wire

Large Stock and Fast Delivery Concertina BTO-22 Type razor Barbed Wire

Razor wire is made by hot dipped galvanized steel wire and hot dipped galvanized sheet plate, as the large quantity needed by clients, we yearly have stock.  even railway and bulk shipping we can do in large quantity.

the common type in the market is BTO-16, BTO-22, CBT-65, Etc.  outer diamter of coil can from 450mm -1100mm.

Below are its detailed technical parameters and application characteristics:

1. Core Structure & Material

1.1 Material Composition

• Blades: Made of hot-dip galvanized steel sheets (complying with ASTM A641 standards) or stainless steel sheets (304/316 grade) with a thickness of 0.5mm ± 0.05mm. They are precision-stamped into shape, featuring edge sharpness like a blade.
• Core Wire: High-strength galvanized steel wire with a diameter of 2.5mm ± 0.1mm (tensile strength: 450-500MPa), providing overall support and anti-stretching performance.
• Surface Treatment: Hot-dip galvanized layer with a thickness of 90-140gsm, passing a 1000+ hour salt spray test to ensure no rusting for over 10 years in harsh environments (e.g., humidity, high salt). Some models offer PVC coating (thickness: 0.8-1.2mm) to further enhance UV resistance and anti-aging performance.

  1.2 Structural Design

• Cross-Type Configuration: Two adjacent barbed razor wires are cross-wound and fixed with iron clips, forming a dense diamond mesh structure that effectively prevents climbing and cutting.
• Standard Dimensions:
  • Single roll length: 7-20 meters (customizable)
  • Outer diameter range: 450-1100mm
  • Blade spacing: 26-100mm (e.g., Model BTO-12: 26mm; Model CBT-60: 100mm)
  • Blade specifications: Available in models like BTO-12/BTO-18/BTO-22/CBT-60/CBT-65, with blade length 12-65mm and width 13-32mm.

Specification:

Razor Barbed Wire Coil and Unit Loops

Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire

Details of Razor Wire:

Workshop:

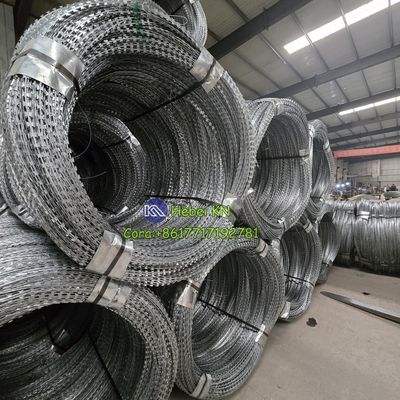

Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.

Packing & Delivery:

1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
