Military Barrier Hesco Bastion Wire Mesh Gabion Box with Spiral Tie Wire and Thick Wire Diameter for Enhanced Stability
our KN factory had been verified onsite by world-leading inspection company SGS Group every year.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers. Julia here,wait for you ,my dear

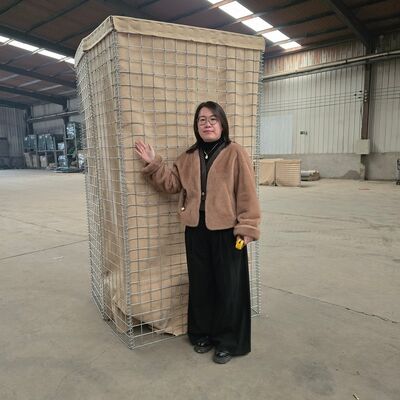

Hesco Barrier is to bind the welded wire mesh with thick wire diameter into wire mesh gabion box with spiral tie wire.

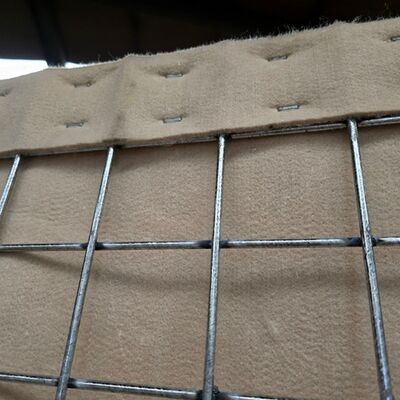

The surface of the welded gabion mesh is smooth and tidy, the mesh is uniform, and the welding point is firm.
It has the advantages of strong firmness, corrosion resistance, permeability and integrity, and is easy to install.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier |
| Model |
Height |
Width |
Length |
| mil-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| mil-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| mil-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| mil-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| mil-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| mil-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| mil-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| mil-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| mil-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| mil-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| mil-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| mil-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| mil-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
Mesh Gabion Box Specification:
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;Color:Grey and Green,Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.
6. Packing: wrapped with shrink film or packed in pallet
The Application for Welded Gabion Barrier Military Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
Defensive Barrier Wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints
1. Usually the Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(Barrier Installation).
